The 14|12 Bandsaw is a 110 Volt saw that feels like a 220. Features include pyramid shaped spine, 1 ¾ HP TEFC Motor, quick release tension, 115 volt outlet and micro polished 21″ x 16″ table mounted onto oversized Trunion paired with Aluminum Hi/Low Fence. Solid Cast Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires. The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended. This is a trade mark of Laguna, just like the famous ceramic Laguna guides. Double windows allows you to check both tension & tracking while the machine is running.

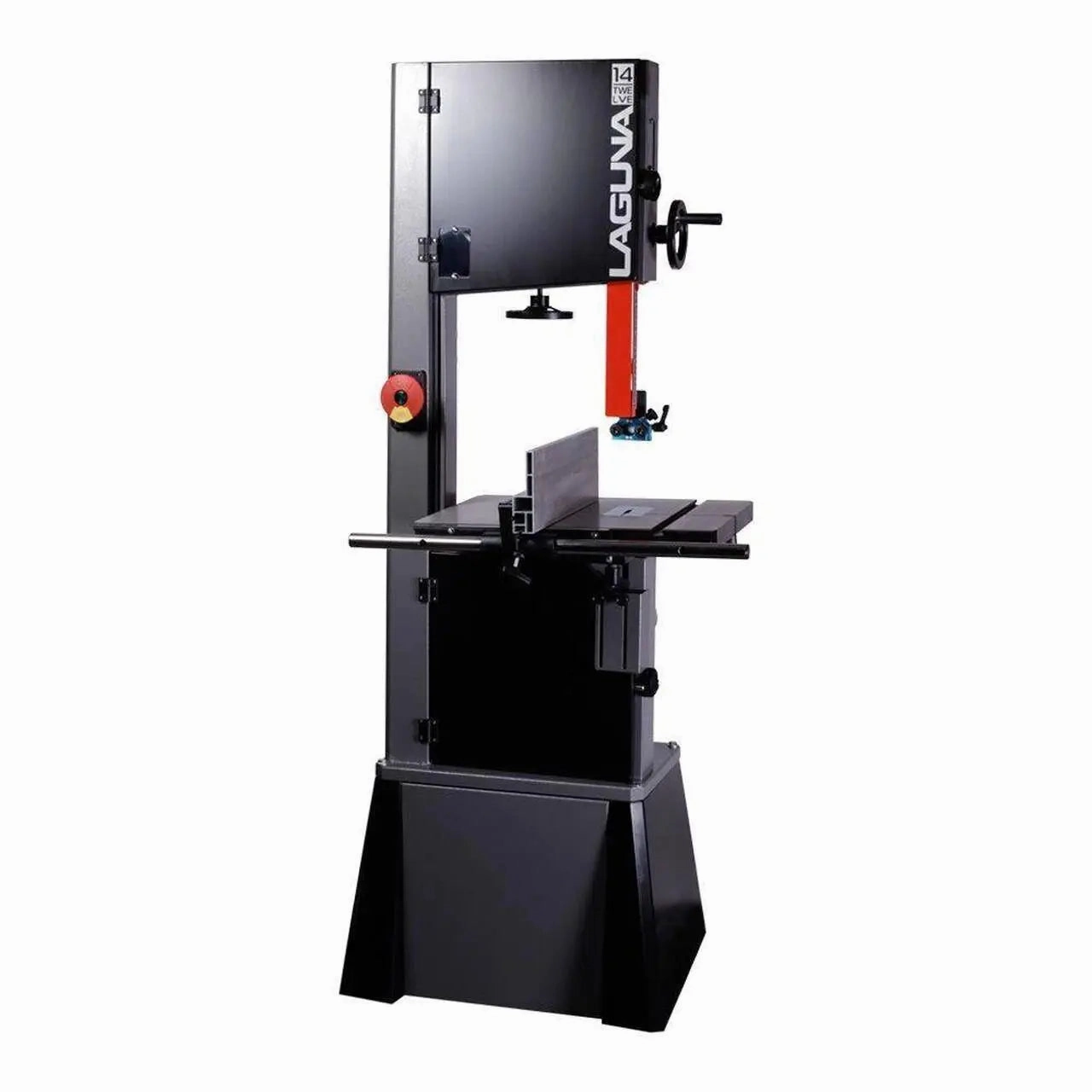

Shown With Optional Wheel & Light SystemsBlade Not Included
Features
- Laguna Guides
- 4″ Dust Port
- Table Height: 38″
- 110 Volt Outlet
- Tension Window
- Tension Indicator
- Tracking Window
- Cast Iron Wheels
Table Tilt Right: 45°
Table Tilt Left: 7°
Positive Stop: 90°
Table Size: 21½” x 16″
Quick-Release Tension
Rack & Pinion Upper Guide
Heavy Duty Cast Trunion: 8″ x 13″
Included: 6ft Cord With Plug
Nema: 5-15P
Premium Anodized Aluminum Throat Plate
Hi/Low Aluminum Fence: 18″ x 5½” x ½”
Dual Voltage Motor: 115/230, Pre-Wired 115 Volt
Motor: 14/7 Amp TEFC
HP:1¾-115/230V
Safety Key
12″ Resaw
Stand Included
Blade Length: 115″
Min Blade Width: ⅛”
Max Blade Width: ¾”
Illuminated On/Off Switch
Shipping Weight: 350lbs
Shipping Dimensions (L x W x H): 55in x 22in x 25in
